🖥 Overview

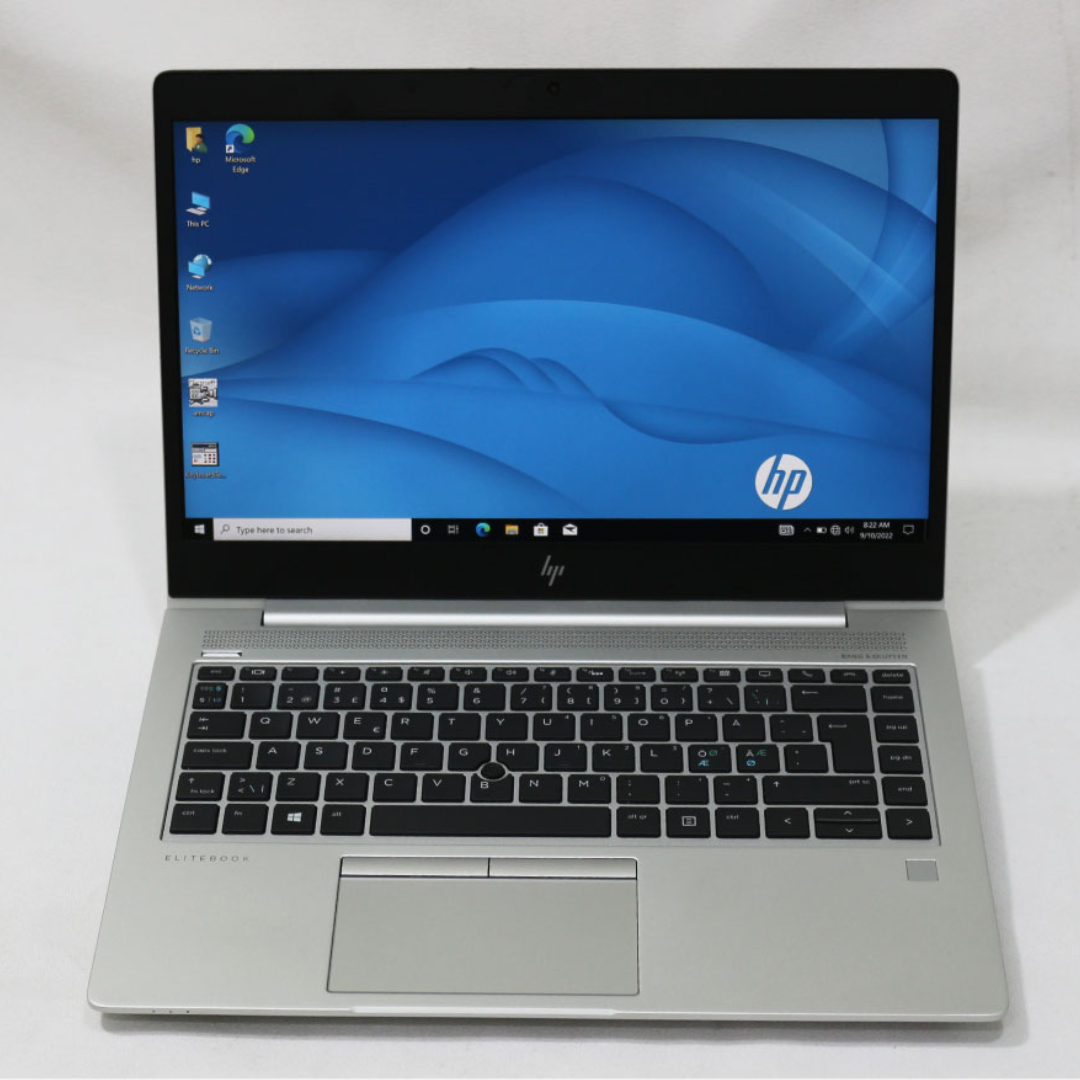

Model: HP EliteBook 745 G6

Processor (CPU): AMD Ryzen 5 PRO 3500U (4‑core / 8‑thread, 2.1 GHz base → up to 3.7 GHz turbo, 6 MB L3 cache)

Some variants may ship Ryzen 7 PRO 3700U or Ryzen 3 PRO 3300U — this spec sheet assumes Ryzen 5 PRO 3500U.

Graphics:

Integrated AMD Radeon Vega 8 (Ryzen integrated GPU)

2 GB dedicated graphics (often listed as Radeon RX Vega 8 / Vega discrete GPU)

📺 Display

Size: 14.1-inch (14.0″)

Resolution: Full HD 1920×1080 IPS, anti‑glare, approx. 250 nits brightness, ~45 % NTSC color (~72 % sRGB)

💾 Memory & Storage

RAM: 16 GB DDR4‑2400 SDRAM, soldered (some configs upgradable via one SO‑DIMM slot; max 32 GB)

Storage: 256 GB PCIe NVMe M.2 SSD (2280), upgradable to larger NVMe drives

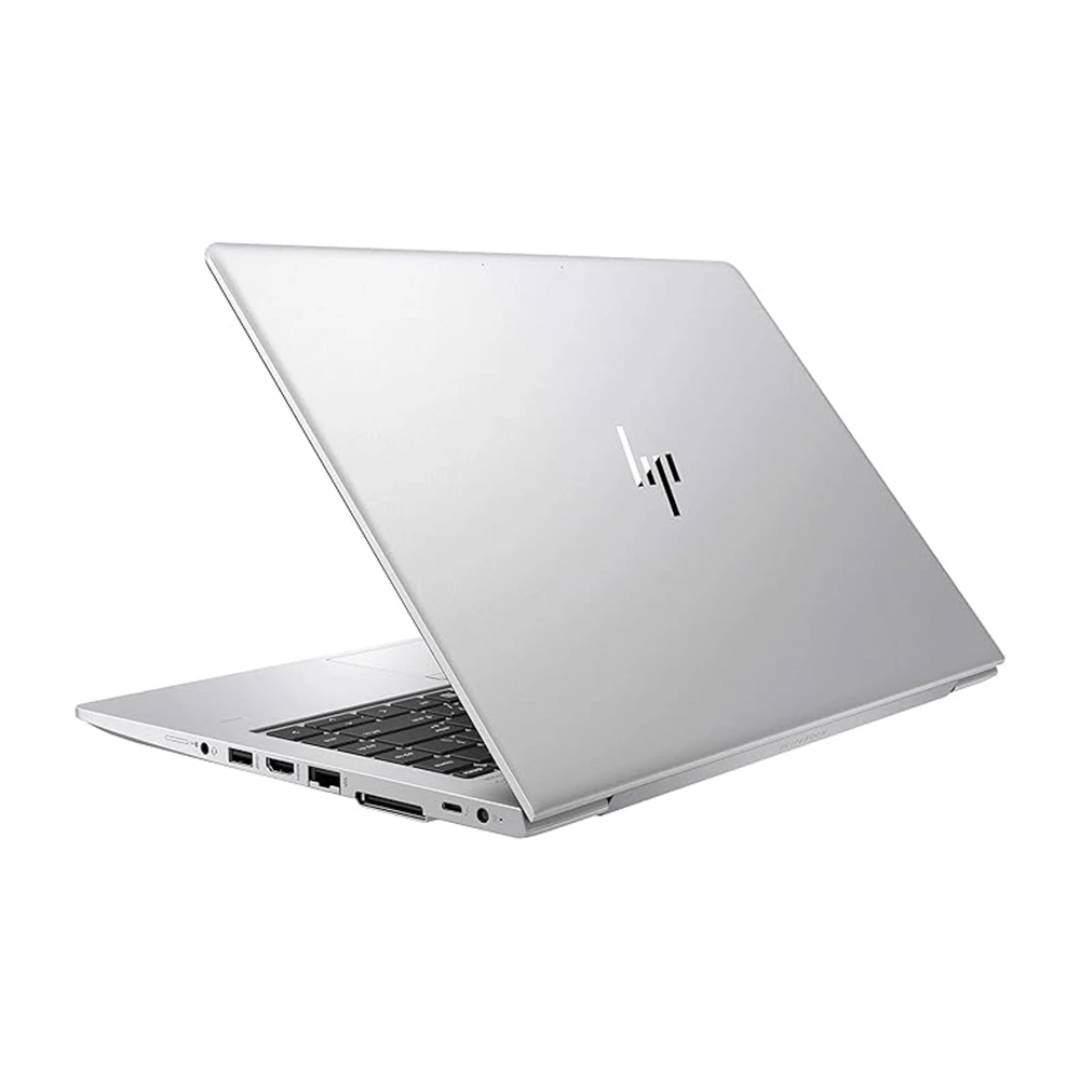

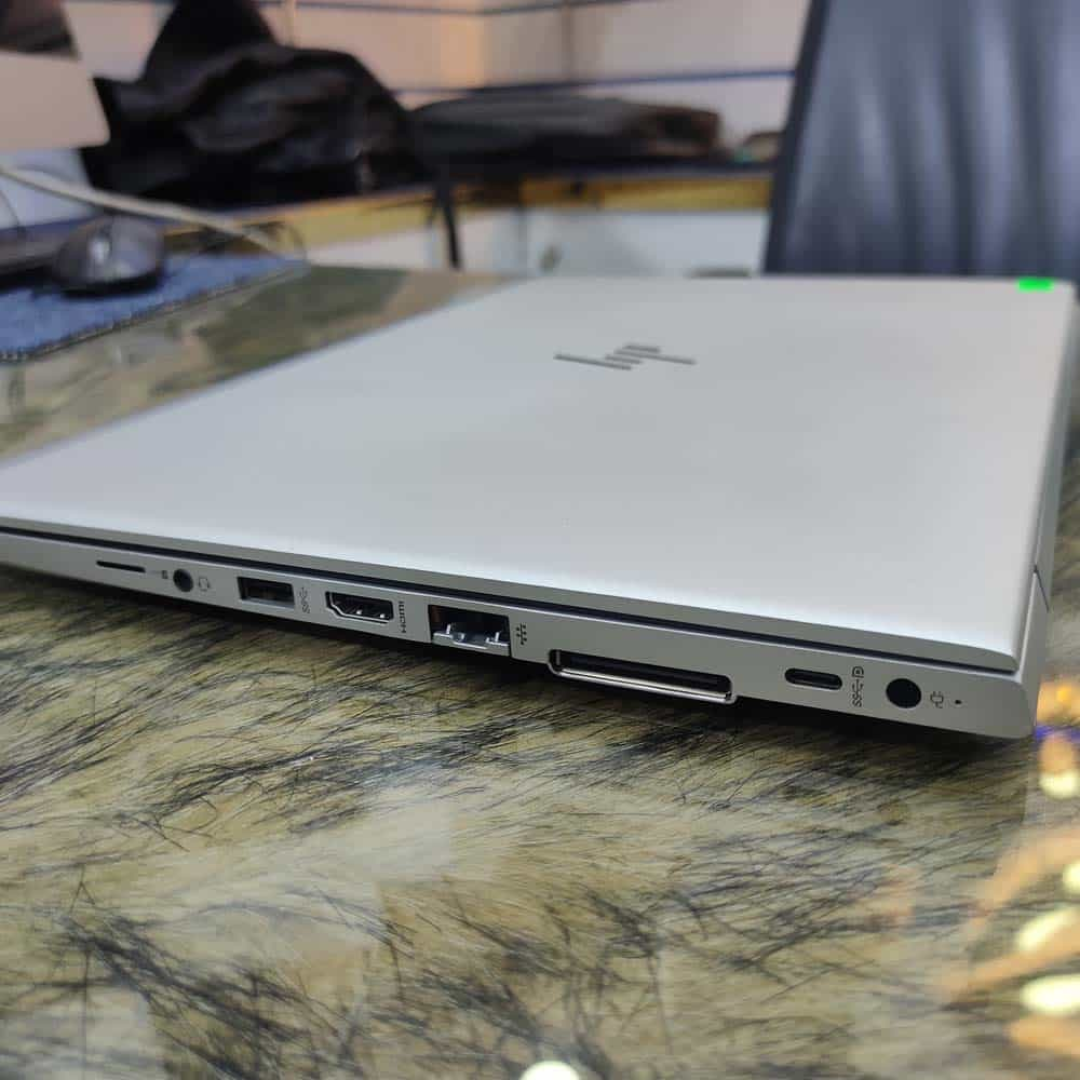

🔌 Ports & Connectivity

Ports:

1 × USB‑C (supports Power Delivery + DisplayPort)

2 × USB 3.1 Gen 1 Type‑A (one with Sleep & Charge)

1 × HDMI 2.0

1 × RJ‑45 Gigabit Ethernet

1 × 3.5 mm headphone/microphone combo

Docking connector, optional SIM‑card slot, optional smart‑card reader

Networking:

Wi‑Fi 5 (802.11ac) / Bluetooth 5.0 combo or optional Intel Wi‑Fi 6 AX200 & Bluetooth 5.1

Optional LTE modem (Intel XMM 7360 Cat‑9) & NFC

🔐 Security & Input

Keyboard: Spill‑resistant HP Premium Collaboration keyboard (optional backlit, DuraKeys surface) with precision touchpad

Security:

Fingerprint sensor

TPM 2.0

HP Sure Start, Sure Click, Sure Sense, BIOSphere

Optional HP Sure View privacy‑screen on some SKUs

🎥 Camera & Audio

Webcam: 720p HD (optional IR camera with Windows Hello support; optional physical privacy shutter)

Audio: Bang & Olufsen‑tuned stereo speakers, 3‑array microphones

🔋 Battery & Power

Battery: 3‑cell, 50 Wh Li‑ion polymer

Battery life: Up to ~4 hours typical (reliable sources cite 3–5 hours under mixed use

📐 Physical Dimensions & Build

Chassis: Durable aluminum alloy

Dimensions: ~32.61 × 23.43 × 1.78–1.79 cm

Weight: Starts at ~1.48 kg (non‑touch); ~1.50–1.53 kg depending on config

🔧 Features & Optional Extras

Docking compatibility: HP UltraSlim Dock, Thunderbolt Dock G2, Elite USB‑C Dock G4, USB‑C Universal Dock, Travel Dock, Mini Dock

Linux support: Ryzen‑based chipset supported in kernels ≥5.8; some users have experienced driver/kernel boot quirks with older distros

Fan behavior: Aggressive out-of-box fan profile; limited thermal tuning options apply (unlike ThinkPads)

🧾 Summary Table
